L2 Line Layer

The L2 Line-Layer | Options | Accessories | Ditch Witch & Vermeer Product Comparison

The L2 utilizes a unique, trenchless, reciprocating motion similar to an industrial sewing machine. Unlike other underground installation methods, the precision cutting blade produces a barely visible slit in the ground while simultaneously burying the desired lines.

Special features:

• Powered by a new 23 horsepower Tier II Kohler engine


• Powerful yet fuel-efficient drive train


• Electronic Ignition System


• Gearbox has both high and low range settings


• Installation speeds up to 120 feet per minute


• High transport speeds up to 140 feet per minute


• Low center of gravity and balanced weight enables the operator to easily maneuver the machine


• Distinctive, patented design permits the smallest turning radius - approximately one foot - on the market without any damage to the line being placed


• Unique "Rocking Chair System" permits forward or backward tipping to allow close placement to buildings, pedestals or poles, eliminating costly, time-consuming hand labor


• Compact L2 is a mere 26 inches wide and allows excellent maneuverability in confined areas


• Each rubber track provides 7.5" by 13" of ground contact area for optimum traction and flotation with a minimal ground pressure of 4.2 pounds per square inch


• 1 year limited warranty [excluding tracks, blades and wear items]


• 2 year warranty on Kohler engine

For more information, download the brochure:

Click on an image below to view a video of the L2 working on the jobsite:

Dial-Up

Cable Modem

Broadband

---

Options

CUTTING BLADES

The L2's carbide edged-blades slice through the ground with a reciprocating motion while simultaneously placing line.

• Standard reciprocating blade can reach a 13" depth
• All blades are adjustable in 1" increments
• Custom lengths available for increased depth capabilities
• Heavier-duty blades can be made to 1/2" thick
• Carbide-tipped cutting edge available

Line-Ward offers a wide variety of quality, hard-surfaced blades and will assist you in selecting the proper blade choice for your specific application needs.

The Pull Blade is used for installing lawn irrigation systems and large cables.

The Ripper Blade will pre-cut a path through severe ground conditions.

The Root Blade has a serrated edge for pre-cutting a path through even the worst root conditions.

The Regular Feed Blade is used for installing a RG6 coax cable, 2 or 3 pair telephone low voltage wire and underground pet containment wire.

The Large Feed Blade allows installation of two of the above wires in the same pass as well as some larger wires.

The Extra Large Feed Blade is designed to install 6 pair and some 12 pair telephone drop wire and RG11 cable wire.

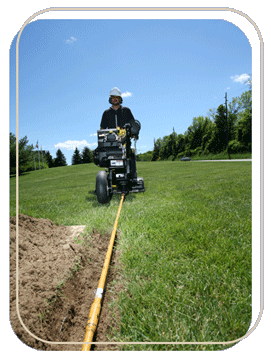

BORING PACKAGE

Optional BA2 Boring Attachment enables easy placement of underground lines, PVC and conduit beneath landscaping, sidewalks and driveways without disrupting existing terrain. The simple, quick attachment feature requires no tools, bolts or pins.

REEL CARRIER

• Attaches directly to the machine
• Holds reels up to 13" wide by 22" diameter
• Easily attached and removed

COUNTER-BALANCE WHEEL

• For increased stability on steep slope applications
• Mounts on the front of the machine with little effort

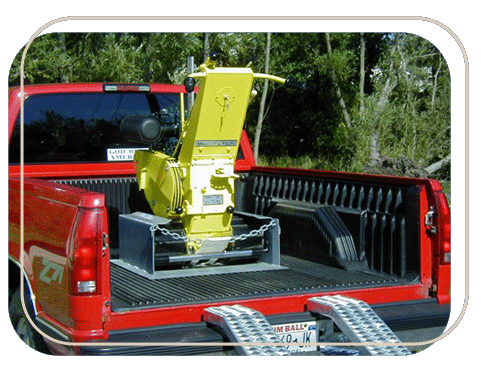

TRANSPORT CARRIER

• Eliminates the need for time consuming and sometimes unsafe tie-downs
• Designed to safely house the L2 while transporting
• Easily installed on any pick-up, van bed or trailer

LOADING RAMPS

• Eases placing L2 into Transport Carrier
• Lightweight yet strong
• Non-skid and rustproof
• Each ramp is 7 feet in length

See the L2 brochure for more option information.

PREVIOUSLY OWNED MACHINES

Line-Ward accepts trade-ins. These previously owned machines are completely rebuilt by Line-Ward, available at reduced rates and have a limited one-year warranty from the date of delivery. For current availability, please contact Line-Ward by phone at 1-800-816-9621 or email at info@lineward.com.
